LanXinHai Chain Link Fence Machine Factory
Manufacturer and exporter of chain link fence and machines
Chain link fence panel is made of flexible diamond wire mesh fabric, woven from high quality steel wire. Used for dog, pets and other animal fencing.

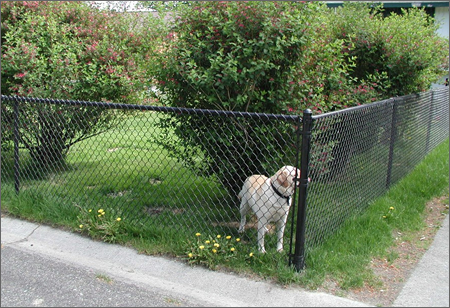

Black & Green Portable Fence
Portable 1-3/8" Frame Fence with foot piece. These multi-purpose panel kits are easy to assemble and dismantle, are self standing on foot piece clamped, are favorite for sports uses in variety of applications.
Uses: Fencing panels for pets, temporary controlled areas, crowd control, fairs, outdoor & indoor events, etc.
Black Chain Link Mesh Fence Panels for Yards and Pets
Material:Galvanized iron wire or PVC coated iron wire
Color:white,green,silver, black
Length:0.5 m-50 m
Width:0.5-5m
Wide diameter:2.8mm; 3.0mm or per request
Opening:50*50mm; 60*60mm or per request
Mesh Fencing Panels
| Mesh | Hot Dipped Galv. Steel | PVC Coated Steel | |||||||
| Wire BWG | Wire Dia. (mm) | Weight kg/m² | Roll Dia 4’x50’ (mm) |
Wire Dia. before/after | Weight kg/m² | Roll Dia 4’x50’ (mm) |
|||
| 2" (50mm) |
8 | 4.2 | 4.5 | 18.4 | 280 | 3.4/4.0 | 3.2 | 19.6 | 280 |
| 10 | 3.4 | 2.9 | 11.8 | 250 | 2.6/3.2 | 1.9 | 12.2 | 250 | |
| 12 | 2.8 | 1.9 | 8.0 | 230 | 2.0/2.6 | 1.2 | 8.4 | 230 | |
| 14 | 2.1 | 1.2 | 5.4 | 220 | 1.4/2.0 | 0.6 | 4.4 | 220 | |
| 2.4" (60mm) |
8 | 4.2 | 3.7 | 14.3 | 290 | 3.4/4.0 | 2.6 | 16.4 | 290 |
| 10 | 3.4 | 2.5 | 10.1 | 280 | 2.6/3.2 | 1.6 | 10.60 | 280 | |
| 12 | 2.8 | 1.63 | 6.8 | 250 | 2.0/2.6 | 1.0 | 6.60 | 250 | |
| 14 | 2.1 | 1.00 | 4.6 | 220 | 1.4/2.0 | 0.48 | 3.85 | 230 | |
| 3" (76mm) |
8 | 4.2 | 3.00 | 11.7 | 300 | 4.4/5.0 | 3.4 | 20.6 | 300 |
| 10 | 3.4 | 2.00 | 8.2 | 290 | 3.4/4.0 | 2.1 | 13.0 | 290 | |
| 12 | 2.8 | 1.3 | 5.7 | 280 | 2.6/3.2 | 1.3 | 8.8 | 250 | |
| 14 | 2.1 | 0.8 | 3.8 | 250 | / | / | / | ||
Chain Link Wire Dog Fence - Dog Run Panels

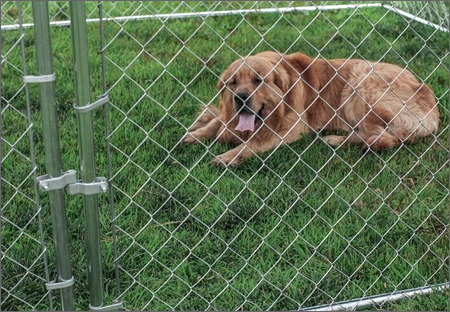

Galvanized Chain Link Fence with Gates For Dog

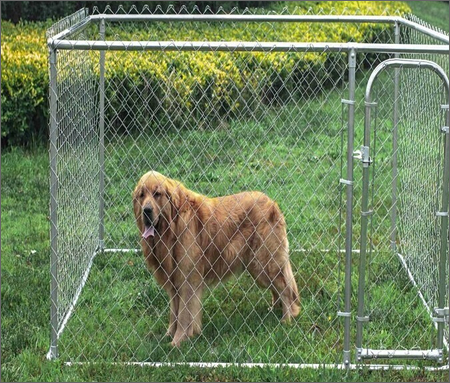

Dog Kennels
Chain Link Dog Kennel, 6' x 6', 6' x 12' kennel panel 1 3/8" tubing hot dipped galvanized.
Packing size: 7.5 ' Width x 7.5' Length x 4' Height
Construction:
8 mesh panels
Steel frames with black powder coated finish
Round edges design ensures much safer keeping
Bolt latches to open the door
Foldable panels for convenient storage and transportation
Easy and quick folding up without tools needed
Suitable for a variety of pets such as puppies, kittens and rabbits.
We also offer the following products, welcome to order from us.

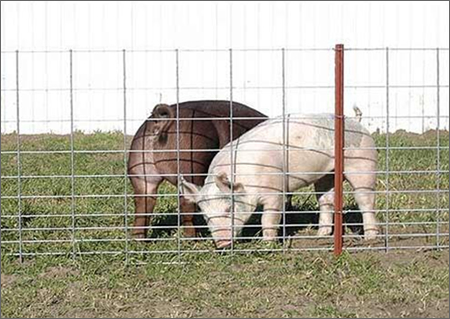

4 GAUGE 34" X 16' HOG FENCE PANEL
- For farm and land fencing
- Welded mesh panels
- Hot dipped galvanized
- Thick zinc coating over all welds
- Dimensions - 34" x 16'
Welded hog panels are manufactured by 4 gauge galvanized wire which are strong enough to protect the panel fence from breaking or collapsing by the angry livestock like hogs. Livestock panels are designed to make a safe place or divide the livestock from the surroundings. The mesh is galvanized before welding to reduce burr which may hurt the animal. Thicker zinc coating than common ones are very effective in extending the durability. Designed with different vertical spacing from the bottom to the top for different growth period of the pigs and livestocks.
| Wire Gauge | 4 Gauge | Vertical Spacing | 8 inch |
| Panel Length | 96 inch | Panel Height | 5 feet |
| Surface Treatment | Galvanized | Edge | Smooth edge |
| Packing | In pallet or null packing | ||
For more dog fence cage-Pls visit:Heavy Duty Dog Cage
