Fencing gate is made of chain link mesh wire infilling fabric, framed with round section tubes and fixed with rollers. The fabric materials are either galvanised or polyester powder color coated meshes.
Types: Walk-in gates, single swing gates, double swing gate, cantilever chain link gates without roller, or with roller.
(the system includes fence panels, posts and gates)
1, Fence panel specification and construction
a. Fence
PVC coated chain link fencing wire of 2.50/3.55mm
diameter, mesh size 50x50mm, height of fence 1.80
metre, and green in colour.
b. Line Wire
Three (3) rows of PVC coated line wire made out of
3.00/4.00mm diameter, which is strained between
strainer posts.
c. Stirrup Wire
PVC coated wire made out of 2.20/3.20mm diameter
to secure line wire with all fencing posts.
d. Tie Wire
PVC coated wire made out of 1.80/2.60mm diameter
to secure fence fabric to line wire at every 300mm
centres.
e. Barbed Wire
Three (3) rows of PVC Coated Barbed Wire
1.80/2.60mm diametre, two ply and four points, with
barbs at every 100mm centres.
2, Fence Gate
Specification and Construction of Double Leaf Swing Chain Link Gate
The Gate shall be a double leaf swing gate; 6 metres wide and 1.8 metres high
and comply with the below specification.
a. Type: The Gate shall be a double leaf swing gate.
b. Size: The Gate shall be 6.00 metres wide x 1.80 metres high.
c. Frame: The Frame shall be manufactured from 60mm OD (3.2 mm thick) MS pipe.
d. Brace: The Brace shall be manufactured from 48 mm OD (3.2 mm thick) MS pipe.
e. Locking Arrangements /Latch
To comply with standards of practice of manufacture. A detailed proposal
shall be submitted together with this cost proposal for the architect’s
approval.
f. Gate Posts
Gate Posts shall be manufactured from 166mm OD (4.85mm thick) MS pipe,
total height to be 1.80 metres above ground +0.80 metres encased in
concrete.
g. Infill
Infill shall be PVC coated chain link fence wire 2.50/3.55mm diameter, mesh
size 50 x 50mm and green in colour.
h. Barbed Wire
Three (3) rows of PVC coated Barbed wire 1.80/2.60 mm diameter, two ply,
and four points with barbs at every 100mm centres.
i. Stretcher Bar
Stretcher Bars shall be manufactured from 25 x 5mm thick MS flat bar.
j. Finishing
All metals shall be hot dip galvanized to BS 1461 and polyester powder
coated in the green colour.
3, PVC Coated Galvanised Steel Posts
Specification and construction of Posts:
a. Intermediate Post
Intermediate Posts shall be manufactured from
48mm OD (3.20mm thick) MS pipe, total height to be
1.80 metres above the ground +0.50 metres
embedded in concrete +0.50-metre crank extension
at every 3.0-metre centres.
b. Straining Posts
All Straining Posts shall be manufactured from 60 mm
OD (3.20mm thick) MS pipe, total height to be 1.80
metres above the ground +0.50 metres embedded in
concrete +0.50-metre crank extension with two
diagonal supports manufactured from 48mm OD
(3.20mm thick) MS Pipe at every 69-metre centres;
along with all fixing accessories including GI Short
Winder, SS M8 x 30 Nut & Bolt, PVC Post Cap, Brace
Band, Tension Band, Double Clamp.
c. Corner Posts
Placed at corner and change in direction locations,
Corner posts shall be manufactured in accordance to
item.
d. End/Gate Posts
Situated at fencing ending or starting location the
End/Gate Post shall be manufactured in accordance
with item below.
e. Stretcher Bar
Stretcher Bars shall be manufactured from 25 x 5mm
thick MS flat bars weaved through end mesh and
secured to the post.
f. finishing
All metals shall be hot dip galvanized to BS 1461 and
polyester powder coated in green colour.
Single Gate
42 x 42", 42 x 48", 48 x 48", 42 x 60", 42 x 72" single walk fence gate 1 3/8" tubing hot dipped galvanized
Double Gate
12' x 42", 12' x 48", 12' x 60", 12' x 72" double drive fence gate 1 3/8" tubing hot dipped galvanized
Infilling Fabric: Chain link mesh roll: 2"(50mm) hole size, BWG 12 (2.7mm) galvanized wire, knuckled edge.
•Round pipe frames: galvanized
•Fittings are galvanized, included are tension bars, clamps, hinges, latch, and drop rods (for double gates).
•Gate height: 4'-8' (1.2m-2.4m)
•Gate width: 3'-12' (0.9m-3.66m)
•Customize available

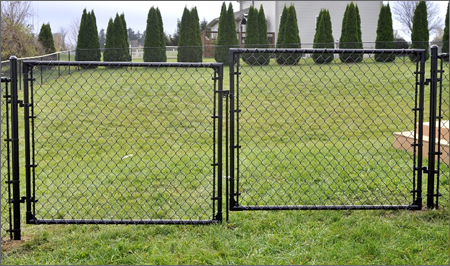

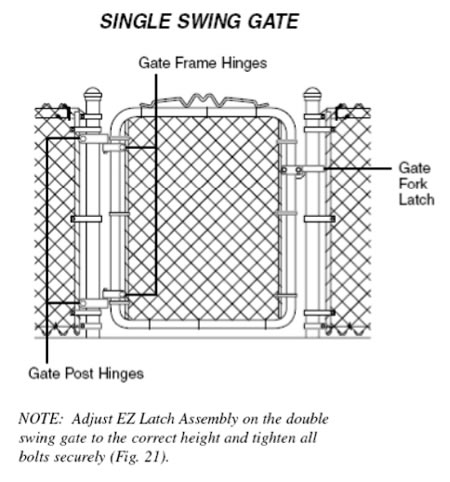

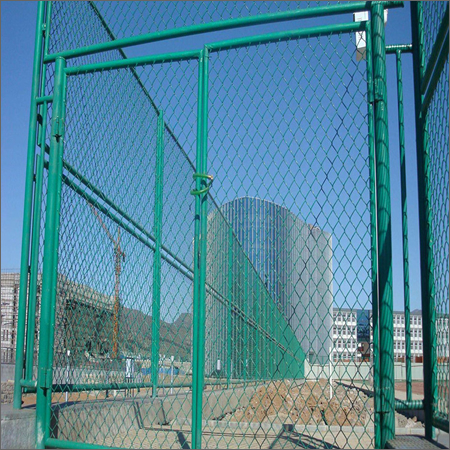

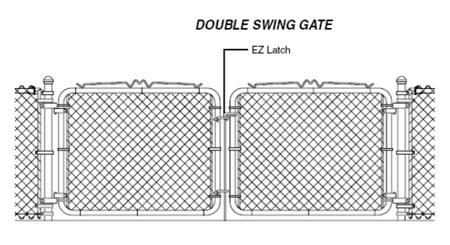

A similar installation procedure is used on both single swing and double swing gates.
a,
Apply gate post hinges to gate post approximately 8" from the top and bottom of the gate post with the
top hinge pin pointing down and the bottom hinge pin pointing up. This will prevent the gate from being
removed and/or from dropping off. Tighten all bolts securely.
b,
Apply gate frame hinges to gate frame. Loosely fasten bolts so they can be easily adjusted on the gate
frame. Hang gate(s) in place so that the bottom of the gate has approximately 2" of ground clearance.
Tighten the bolts on the bottom frame hinge first, then adjust and tighten the bolts securely at the top.
c,
Position gate fork latch at a convenient height. Tighten all bolts securely.
Gates are approximately 2"(50mm) shorter than height indicated to allow space under bottom. Gates are approximately 3-3/4" narrower than width indicated to allow for hardware. Use two leaves to make a double swing gate of the desired width. Barb wire extensions may be added.
The chain link fence gate allows pedestrians and autos to go in and out of the enclosed areas or sites conveniently while remains a safe barrier. The chain-link gates are very much used together with chain link fencing for houses, edifices, ranches and farms, airport, tennis court, zoo, and other places. We can make the vehicle gate and pedestrian gate which are welded or assembled by chain link fence fabric, pipe frame and other fittings.
