Multi-function Chain Link Fence Machine

Multi Functional Wire Chainlink Weaving Machinery

Materials for Processing: Low carbon steel wire, stainless steel wire, aluminum alloy wire, PVC wire.

Weaving and features: Link weaving, the finished mesh product is very uniform, the mesh surface is flat, the wire diameter range is wide, the corrosion life is long, and the weaving is simple, beautiful and practical.

Application: The machine is used for producing of chain link perimeter security fence, sports perimeter fence, river bank and slope protection fence, conveyor belt mesh, protection fence, pet fence, etc.

Features
a, Lanxinhai machine has simple structure for easy operation and maintation;
b, CNC manual-computer operation interface
c, Accurate time and arrangement
d, Clear display of the work condition and production;
e, Auto-feeding of wire and Auo- rolling of mesh;
f, Accurate mesh size control;
g, Accurate edge locking

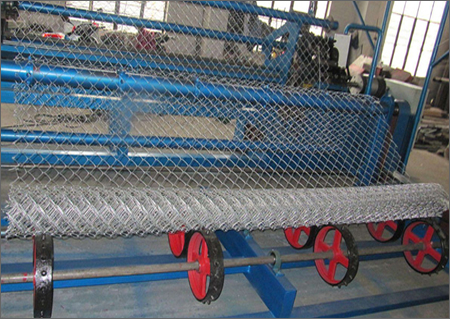

Machine for producing 2 inch opening single wire chain link mesh

Main technical parameters:
1.Dimension: length:3200mm, width:750mm, height:850mm
2.Maximum working platform: 2000mm
Maximum weaving width:2000mm
3.Maximum mesh size: 200 x 200 mm
Minimum mesh size: 4 x 4 mm
4.Maximum wire diameter: 6.0mm
Minimum wire diameter: 0.4mm
Type A machine power:1.5kw
Type B machine power:0.8kw
Type C machine power: 9.5kw

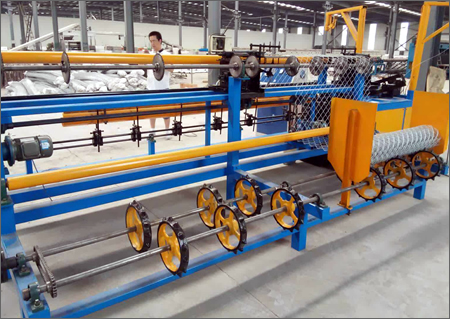

Multi-Functional Machine Technical Details:

      Type C Chain link fence machine Dimensions mm 5400*2250*2000 (3m mesh Width machine)
Power Kw 9.5Kw
Weight Kgs 1800
Mesh Width m 0.5-3(5)
Wire Diameter mm 1.5-4.5 (PVC Wire : 1.8mm – 5.8 mm)
Hole size mm 25-100(1"-4")
capcity m2/hour 80-150
Rated Voltage V 220 380 420 440 etc

Automatically producing of spiral wire, weaving, edge knuckle twisting and rolling process.

This machine can be operated with weaving of Galvanized Wire, PVC coated wire, Stainless steel wire.
