SS / Gal. Chain Link Mesh Netting

Material: Hot dipped galvanized wire, pvc coated wire, stainless steel wire.
Coating Colors applied for coated mesh: Beige, silver, black, green, dark green, blue, yellow, etc.
Mesh roll length:18m or according to customers' request.
Mesh roll width: 0.5m-4m.
Wire diameter ranges from 1.2mm to 5mm.
Opening shape: Diamond hole
Opening: 25mm, 40, 50, 55, 60, 65, 76, 100 etc.(Special sizes can be customized)
Grades: Commercial grade and residential grade

Features: Choice galvanized steel wire screen material, uniform opening, simple weaving, flexible fabric, and practical use.

Uses: Chain link wire nets are mainly used in keeping pets and dogs, machinery and equipment protection, highway barrier, the road green belt protection, security fencing of sports field, park, zoos, also security and protection of construction sites, rivers, mountain slope soil fixing and residential security.

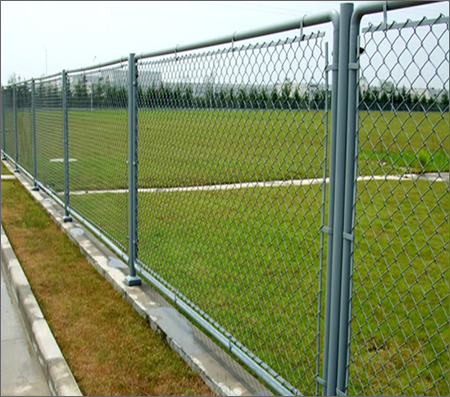

5x5 cm hole chain link fence
Hot dipped galvanized chain link mesh 5*5 cm hole size, 1.2m, 1.5m, 1.8m

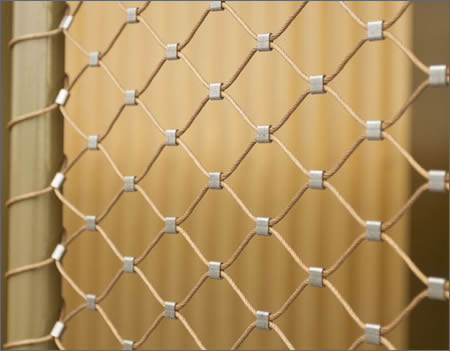

Rope net of diamond mesh
Beige color coated steel wire mesh, wire rope security net, commercial 2" diamond x 9 gauge thickness.

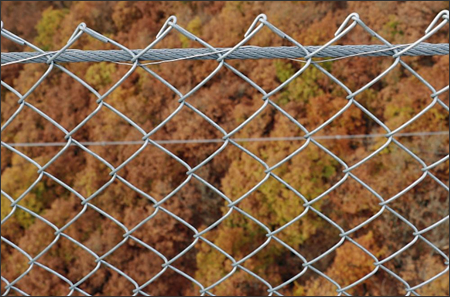

Chain Link Fence Diamond Mesh
Low Carbon Steel Diamond Mesh, Galvanized, residential grade 2-1/4" diamond x 11-1/2

Height: 5 ft, 6 ft, 7 ft, 8 ft, 10 ft, 12 ft.

Aluminium Coated Steel Fence Mesh

Aluminium Coated steel wire woven fabric: thickness 3.76mm, mesh size 50mm x 50mm, width 2.13m, length 10m per roll

Chain must conform to ASTM A491-10 and ASTM A817 or equivalent international standard.

Galvanized and PVC Coated Chain Link Mesh

Galvanized and PVC-coated chain link mesh confirming to SLS and other international standards. It shall come with a limited 15 years guarantee.

a, The size of the mesh shall be 50mm x 50mm (+ 4.50mm tolerance)
b, Diameter of the mesh wire without coatings shall be 3.0mm + 0.08mm
c, Diameter of the tension wire without coatings shall be 3.5mm + 0.10mm
d, Diameter of the Galvanized and PVC-coated mesh wire shall be 4.0mm + 0.20mm
e, Diameter of the Galvanized and PVC-coated tension wire shall be 4.5mm + 0.20mm
f, All wires shall be galvanized to 270g/m2 to cater 15y years warranty
g, Radial thickness of the mesh wire and the tension wire shall be not less than 0.40mm
h, verall diameter of the PVC coating shall be within + 0.20mm tolerance
i, Colour of the PVC coating shall be dark blue
j, Minimum concentricity shall be 60%
k,Tensile strength of steel wires shall be 350 - 550 MPa
l, All steel wires shall comply with the requirements for Wrapping strength and Twist strength in SLS 1148:1997 and shall be manufactured in drawn and annealed condition.

Mesh specifications:

Opening 1" 1.5" 2" 2.25" 2.4" 2.5" 3" 4"
25mm 40mm 50mm 55mm 60mm 65mm 76mm 100mm
Wire Diameter 18#-7#
Roll Length 1.0m-50m
Roll Width 0.5m-5.0m
The materials and specifications can be made according to customer's requirements.
