LanXinHai Chain Link Fence Machine Factory
Manufacturer and exporter of chain link fence and machines
Products

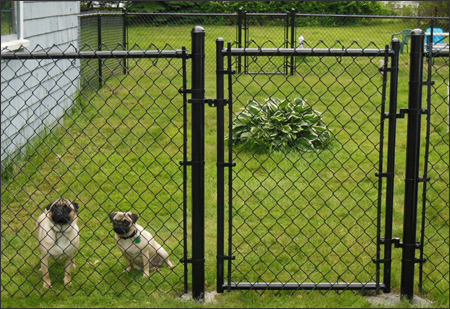

Chain Link Fence Coating With PVC

We export pvc coated chainlink fence to Brazil, Europe, Saudi Arab, Australia and other countries. Colors for Saudi Arab are beige coating mostly, while that for other countries are mostly green coating.

Size and Market :
Beige Color Chain Link Fence, Opening 50mm, wire diameter 3.50mm after being coated, roll length 15m, roll width 2m, beige color coating, for Saudi Arabia
Green color PVC coated Chain link fence: 2.76MM/3.8MM X 2” mesh X 1.8M height X 25 M/Roll is for Brazil Market.
PVC chain link fence ( Opening 2”x2”) ( Wire Diameter 2.76mm) (Length of the roll =400mtr) (Width of the roll = 5mtrs) for Euro Fence
PVC chain link fence ( Opening 2”x2”) ( Wire Diameter 2.76mm) with 1.2 meter height chain link boundary fence using Y posts to keep small animals entering the area, for Australia and New Zealand

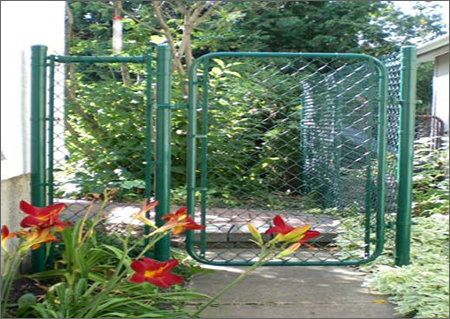

PVC Electro Galvanized Chain Link Fence Rolls
Materials: Steel wire
Opening:1/4"-4"
Wire dia(mm):1.2-5
Length of the roll(m):0.50-100.

PVC electro galvanized chain link fence ( Roll):
3mm( After PVC 1.8mm wire)×5×5cm×1×15m
3mm(After PVC1.8mm wire )×5×5cm×1.8×15m
3mm( After PVC,2mm wire )×5×5cm×1×15m
3mm(After PVC,2mm wire )×5×5cm×1.8×15m
2.7mm( Before PVC)×5×5cm×1×15m
2.7mm( Before PVC)×5×5cm×1.8×15m

Fence Fittings

5' high x 9 ga. plastic / vinyl chain link
1 3/8" O.D. x .065 wall top rail
1 5/8" aluminum tie wire (for top rail)
2 1/2" x 7'6" .065 terminal post
2 1/2" post cap, aluminum acorn
1 5/8" x 7' .065 line post
1 5/8" x 1 3/8" aluminum loop cap
1 5/8" aluminum tie wire (for line post)
5' tension bar
2 1/2" tension band
2 1/2" brace band
1 3/8" aluminum rail end cup
5/16" x 1 1/4" carriage bolt/nut
5' x 3' wide single swing gate
2 1/2' X 1 3/8" single gate hardware.

Electro Galv. Chain Link Fence Coating With PVC


Pvc coated chain link fence 2.0mm/3.0mm, 50mmx50mm,1.5mx30m per roll
Description Opening ( mm ) Wire diameter ( mm ) Width of the roll ( m ) Length of the roll ( m )
Pvc coated wire mesh 50 mm 2 mm 2 m 0.50 - 100
55 mm 2 mm 2 m 0.50 - 100
60 mm 2 mm 2 m 0.50 - 100
50 mm 3.5 mm 2 m 0.50 - 100
55 mm 3.5 mm 2 m 0.50 - 100
60 mm 3.5 mm 2 m 0.50 - 100
50 mm 4 mm 2 m 0.50 - 100
55 mm 5 mm 2 m 0.50 - 100
60 mm 6 mm 2 m 0.50 - 100
50 mm 4.5 mm 2 m 0.50 - 100
55 mm 4.5 mm 2 m 0.50 - 100
60 mm 4.5 mm 2 m 0.50 - 100
50 mm 5 mm 2 m 0.50 - 100
55 mm 5 mm 2 m 0.50 - 100
60 mm 5 mm 2 m 0.50 - 100

Chain link fence made of PVC-coated 2.50/3.55 mm Ø wire and
mesh size 50 x 50 mm, green in colour to a height of 1.80 metres.

PVC Coated Fence with Barbed Wire for Oman

Construction:
2.5mtr height PVC coated fencing
Mesh Wire: 4mm PVC Coated wire
Option: 2mm PVC Coated wire
Barbed Wire
I - hook

PVC Chain Link Fence is also used for breeding of animals.
